Critec Range

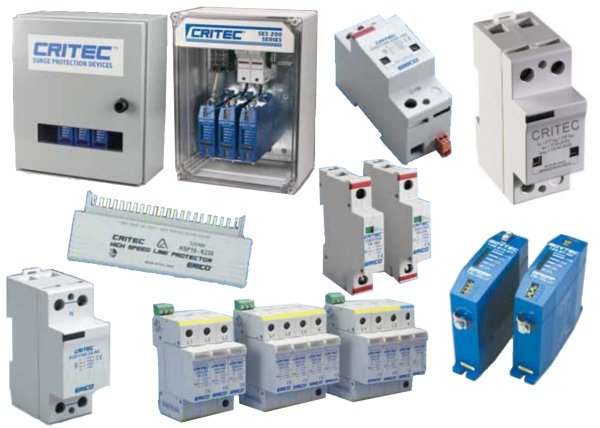

The Critec range includes a variety of surge protectors, filters, diverters, arresters, suppressors & other protection devices for power & data lines.

SKU: 20106 Category: All Alpha Power Products Tags: Alpha Surge Protection, Critec, CRITEC Surge Protection, Dissipate spikes and surges, Reduce damage to equipment, surge protection, Utilise existing infrastructure

The Critec surge protection range consists of a wide variety of surge protectors, diverters, arresters, suppressors, filters and a number of other protection devices which are used in power and data lines. The Critec range is developed and designed using a 6 point plan of protection agaisnt direct spikes and surges for power and data lines, making it ideal for use in the telecommunications industry. Below is a table outlining specifications for the Novaris surge protection range. For more detailed specifications, download the Critec Surge Protection Range document.

Critec Range Technical Description

I_max = Maximum Discharge Current (8/20µs) [unless stated otherwise]

U_p= Voltage Protection Level – @ 3kA (8/20µs) [unless stated otherwise]

U_c = Maximum continuous operating voltage

I_imp= Maximum impulse current (10/350µs) [unless stated otherwise]

I_load=Maximum load current

Model	I_max / I_imp/ I_line	U_p	U_c	Phase/Pole
SEP400 – Service Entrance Premium	100kA	400 – 1560V	170 – 400V	3 Phase
SES200 – Service Entrance Standard	800 – 100kA	400 – 2000V	170 – 528V	1 & 3 Phase
SES65 – Service Entrance Standard	65kA	400 – 520V	150V	1 Phase
TDS MT – Transient Discriminating MOVTEC	200kA (MT) 40kA L-N & L-G (MTU) 20kA N-G (MTU)	330 – 1500V	170 – 528V
TDX 150 Series – Transient Discriminating Panel Protectors	75kA	400 – 1640V	170 – 830V	1 & 3 Phase
TDX 100 Series	50kA	400 – 1400V	70 – 830V	1 & 3 Phase
TDX 50 Series	25kA	400 – 1660V	10 – 830V	1 & 3 Phase
TDS MPM – TD Protection Module	100 – 130kA	0.75 – 2.3kV	400/692V	3 Phase
TSG SRF – Triggered Spark Gap Surge Reduction Filters	130kA / I_imp=50kA	262 – 413V	175V	1 Phase
TSG SRF – Triggered Spark Gap Surge Reduction Filters	130kA / I_imp=50kA	210 – 500V	275/476V	3 Phase
SGD/TSG – Surge Gap Diverter/TSG	130 – 140kA / I_imp=50/100kA	0.6 – 20kA	150 – 440V
DDI – DIN Decoupling Inductor	I_line=35 – 63A		500V_AC 200V_DC
DSD1150 – DIN Surge Diverter	150kA / I_imp= 25kA	0.48 – 1.6kV	150 – 275V_AC 200 – 350V_DC
DSD1100	100kA / I_imp=10kA	480V_AC 1.7kV_DC	150 – 275v_AC / 200 – 350V_DC
Critec Range DSD160	60kA / I_imp=5kA	0.48 – 2kV	150 – 440V_AC / 200 – 580V_DC
Critec Range DSD140	40kA	0.48 – 1.8kV	150 – 440V_AC / 200 – 580V_DC
Critec Range DSD130	30kA	0.48 – 1.7kV	150 – 275V_AC/ 200 – 350V_DC
Critec Range DSD110	10kA	0.55 – 1.4kV	150 – 440V_AC/200 – 580V_DC
Critec Range DSD340, 380	40/80kA / I_imp=5/25kA	0.85 – 1.7kV	275V_AC / 350V_DC	3 Phase
TDS/TDS50/DAR/TDS SC – TD suppressor & DINLINE Alarm & Relay Surge Counter	10 – 80kA I_imp= 8 – 16kA	600 – 960V	275 – 340V
TDF – Transient Discriminating Filter	20ka (L-N, L-G) 10kA (N-G)	250 – 600V	170 – 340V	1 Phase
DSF – DINLINE Surge Filter	4 – 16kA	110 – 750V	30 – 275V_AC 38V_DC	1 Phase
OHA – Overhead Arrester	30kA	1.2 – 2kV @15kA	150 – 440V
LPP – Light Pole Protector	40kA	1.2 – 1.8kV	320 – 550V	1 Phase
UTB – Universal Transient Barrier	20kA	10 – 480V (L-L)	5 – 150V_AC 7 – 200V_DC
DSD (DC) SIN Surge Diverter	20kA	19 – 40V (L-L)	15 – 28V_DC
SLP/HSP/DLT – Subscriber/High Speed Line Protection/Termination	20kA ([L+L]-E) I_line= 0.12 – 1A		13 – 190V
RJ11 Telephone Line Protection	0.5 – 20kA	110V (T-R) 500V ([T-R]-G)	280V
DEP – Data Equipment Protector			9 – 15V_DC
LAN Protector	500A	23V (L-L) 140V (L-G)	Up to 65V_DC
CATV – Community Antenna TV Protector	5kA	90V
CCTV – Closed Circuit TV Protector	20kA	60V
LCP – Loadcell Protector	300A – signal-shield 10kA – shield-ground	30V – signal-ground 15V – signal-signal 90V – shield-ground
TEC/IJP – Transient Earth Clamp & Insulated Joint Protector	100kA	1000V @ 1kV/µs
PLF – Power Line Filter	20kA	50 – 600V	275V	1 Phase
MSPD – Multi-socket Protection Device	5kA	600V	275V	1Phase
Model	I_line	U_p	Surge Rating	Phase/Pole
PANAMAX MAX 8 – Plug-in Protector	15A	330V Telephone – 260V CATV – 0.7V Satellite – 27V	52kA	1 Phase
PANAMAX MAX 2	15A	330 – 700v Telephone – 260V CATV – 0.7V	52kA	1 Phase
PANAMAX MAX ImagePro 20 – Digital Equipment Noise Filter	20A	330V Telephone – 260V LAN – 7V	52kA	1 Phase
PANAMAX TowerMAX – Modular Plug-in Protector	15A	330V Telephone – 260V LAN – 7V T1 – 70V	52kA	1 Phase

For more information and product specifications, please refer to the relevant document link, or contact us on 02 9602 8331 or follow us on Facebook to stay up to date and receive regular updates.
