Data Centres Switching and DC power settled on the drawing
Switching and DC power, engineered with the design team before the specification freezes.
The challenge
Switchrooms need the critical load moved to a healthy source in milliseconds, and DC for switchgear control, with decisions fixed early in design.
Our solution
We work with the design team on switch configuration, protection and transfer and supply switchroom DC as a built and tested system.
What we supply
Transfer switching, switchroom DC, UPS and batteries
Transfer switches
Static transfer switches up to 600A, automatic transfer switches up to 1250A. Single and three phase
Applied where: Moving the critical load between two independent sources.
Ranges: Alpha STS and ATS

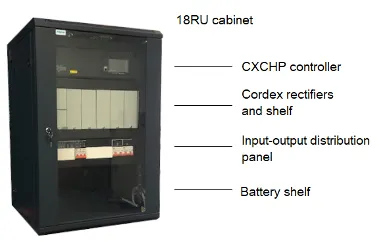

Switchroom DC
12V to 220V DC, built as a system
Applied where: Switchgear control, generator starting and communications.
Ranges: Cordex
Online and modular UPS
1 to 10kVA online, three phase and modular
Applied where: Equipment rooms and control rooms.
Ranges: Vanguard, modular UPS
Batteries
Lithium and gel, battery replacement
Applied where: Battery banks for switchroom DC and UPS, replaced on a plan.
Ranges: APL48 lithium, APFT12 gel
- ✓Pole configuration, protection and transfer time settled on the drawing
- ✓Cordex rectifiers and controllers supplied across all segments
- ✓Onsite maintenance and battery replacement in live data centres
- ✓Specifications confirmed for each design
Next step
Send us the single line diagram. We will size the switch and the DC system.
Call +61 2 9602 8331 or email sales@alphapower.com.au.
