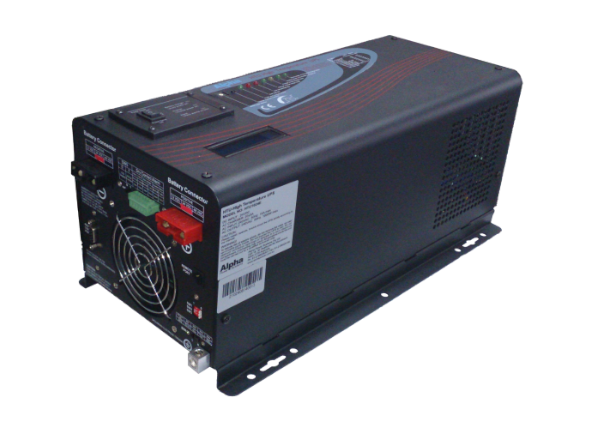

The HTU UPS is a durable, high operating temperature UPS, ideal for outdoor applications. It is a combination of an inverter, battery charger, and AC transfer switch in one complete system with a peak conversion efficiency of 88%. It has an overload capacity of 300% for 20sec to support tools and equipment longer.

The HTU UPS features power factor corrected, sophisticated multi-stage charging, and pure sine wave output with a high surge capacity, meeting the power needs of inductive loads without exceeding equipment limitations.

When AC utility power is lost the transfer relay is de-energised and the load is automatically transferred to the UPS output, conversely, once the utility power is restored and voltage is within the UPS range, the relay is re-energised and the load is automatically connected to utility power.

Another important feature of the HTU UPS is the customizable battery priority switch to extract maximum power from the batteries.

HTU UPS Technical Description

  • Ambient operating temperature up to 60°C (up to 70°C de-rated)
  • Dry contact relay alarms, RS232 and SNMP optional
  • High overload capacity 300% rated power for 20 seconds
  • Low quiescent current, power saving mode
  • 4-step intelligent battery charging, power factor correction
  • 8 pre-set battery type selector & de-sulphation for flat batteries
  • Powerful charge rate – up to 110A selectable 0 – 100%
  • 4-10ms transfer time
  • 15s delay before transfer when utility power is restored
  • Allows start-up and through power when batteries depleted
  • Cooling fan
  • 13VDC battery recovery point, dedicated for renewable energy systems

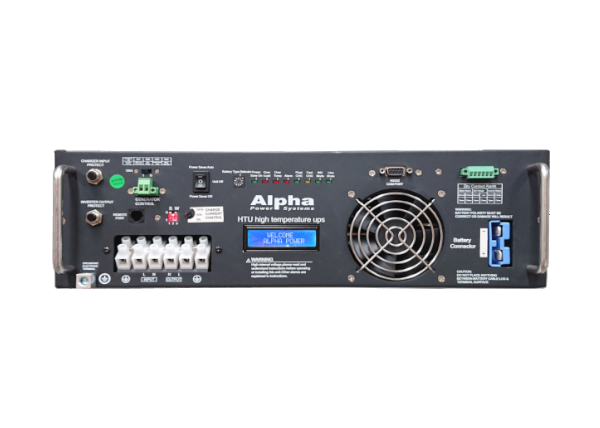

  • Rack mount and wall mount available
  • Available in the sizes: HTU 1KVA, 1.5KVA, 2KVA 3KVA, 4KVA, 5KVA, 6KVA

For more information and product specifications, please refer to the relevant document link, or contact us on 02 9602 8331 or follow us on Facebook to stay up to date and receive regular updates.
