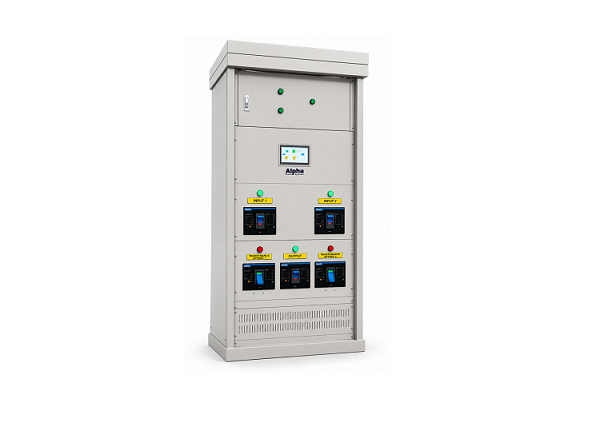

The STS-3 is a solid-state, 3-phase, 4-pole switch which connects critical loads to 1 of 2 separate power sources; 1 source is primary or priority and the other is an alternative power source to ensure power continuity.

The STS 3 is fitted with 2 internal maintenance bypass switches enabling load transfer to supply without interruption to load. Key-operating locks ensure 2 bypass switches cannot be closed simultaneously so as to avoid connecting both sources to each other. The complete bypass isolation allows for maintenance of all serviceable components without interruption to the load. Control logic ensures in the case of an accidental bypass closure on the passive line, the load is automatically transferred to the line.

This switch is designed to switch between different AC input lines according to priority criteria and the technical characteristics of the input voltages. If lines are synchronised, the transfer time from one power source to the other is less than 4ms.

STS-3 Technical Description

  • Continuous monitoring of sources
  • Automatic and instantaneous transfer
  • Manual transfer ability
  • Redundancy of internal power distribution
  • Dual maintenance manual bypass
  • Enhanced monitoring and diagnostics
  • Compact size
  • True over-sized neutral (2ln)
  • Short circuit transfer inhibit
  • Programmable alarm relay contacts
  • Front access to all power components
  • Bottom of top cable entry
  • Redundant cooling with monitored fans

For more information and product specifications, please refer to the relevant document link, or contact us on 02 9602 8331 or follow us on Facebook to stay up to date and receive regular updates.
