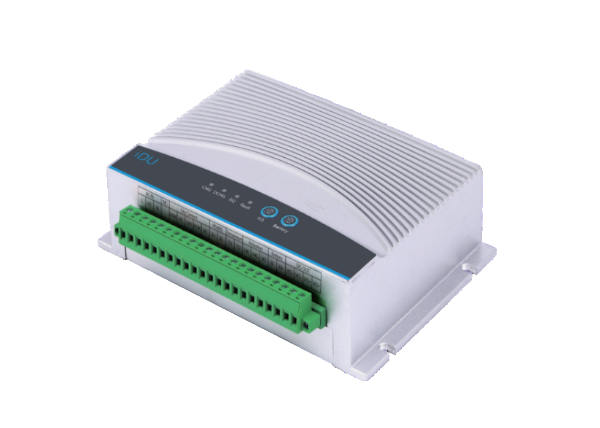

IDU500 DC UPS

IDU500 DC UPS integrates multiple functions in one unit including a smart battery charger, battery monitor and load management software. The built-in adaptive charging algorithm with automatic temperature compensated charging makes this an ideal choice for back-up power systems used for various outdoor applications.


IDU500 DC UPS Technical Description

  • Adjust input voltage 110VDC or 220VDC
  • Power factor correction
  • Temperature compensated charging
  • High temperature operation (-40 – 70°C)
  • Low power consumption
  • Self-cooling design
  • IP55 rated
  • RS485 Communication for real-time data acquisition for:
    • Power supply
    • Alarm
    • Battery voltage, discharge current, capacity and run-time
    • Device history
  • Protection from:
    • Overvoltage
    • Over current
    • Over temperature
    • Short circuit

For more information and product specifications, please refer to the relevant document link, or contact us on 02 9602 8331 or follow us on Facebook to stay up to date and receive regular updates.
